3 Phase Transformed Based UPS
CPU+CPLD Full Digitized Online UPS
Built-In Output Isolated Transformer
1. High Performance Index
a) Advanced Rectifier and IGBT Inverter Technology. Online 3 Phase Input/Output double conversion structure to adapt 380/400/415V and 50/60 Hz Mains Grid Supply Systems.
b) Wide Input Range from 286 Vac to 476 Vac. High Adaptive Capacity to Mains Grid Supply System and Different kind of Loads. High Overload Ability -- can still working under 120% Overload for more than 10 minutes, 150% Overload for more than 15 minutes.
c) System Overall Efficiency Upto 90%
d) Intelligent Fault Diagnosis system with large storage memory of fault histories.
e) Friendly and Intuitive User Interface. Large LCD Screen with multi-functional buttons.
2. Safe and Reliable
a) RP Series UPS use CPU+ CPLD full-digitized control to operate all power conversion sessions during the operations, which has higher system reliability than traditional UPS systems.
b) Output Isolated Transformer Built-in. It can reduce impacts and interferences from Load Harmonic Wave Current and N-Wire Voltage.
c) 90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.
3. Various Optional Accessories.
a) Multiple communication interfaces integrated (RS232, RS485, Dry Contact, EPO, Etc.)
b) Optional SNMPcommunication adapter available.
lMultiple CPU+CPLD Full-Digitized Control to increase system consistency and reliability.
lWide Input Voltage and Frequency Range
lHigh Loads Compatibility and Output Overload Ability to ensure safety
lUser Friendly and Intuitive LCD Screen
lDouble Conversion Online technology and Output Isolated Transformer can isolate any possible interferences from Mains Input Power or Generators to Loads

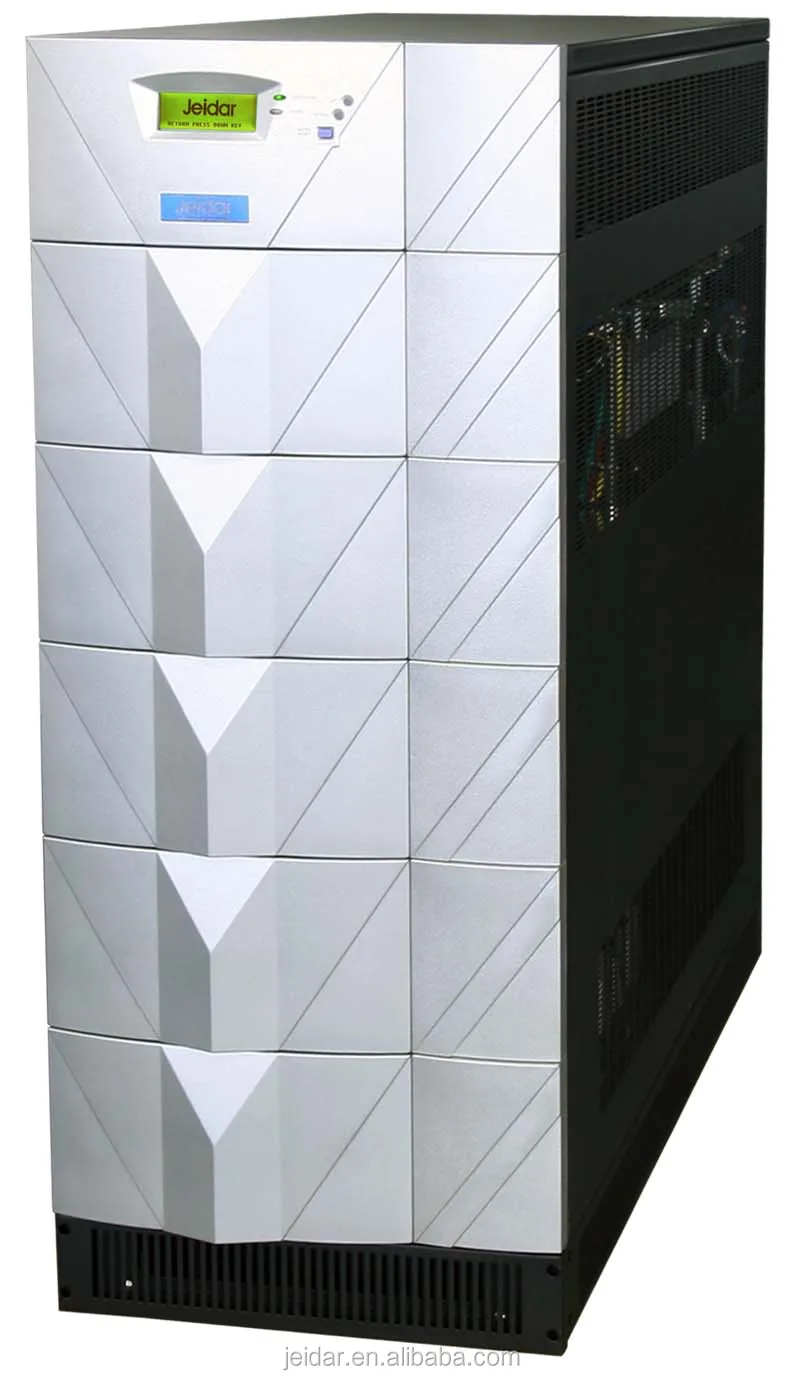

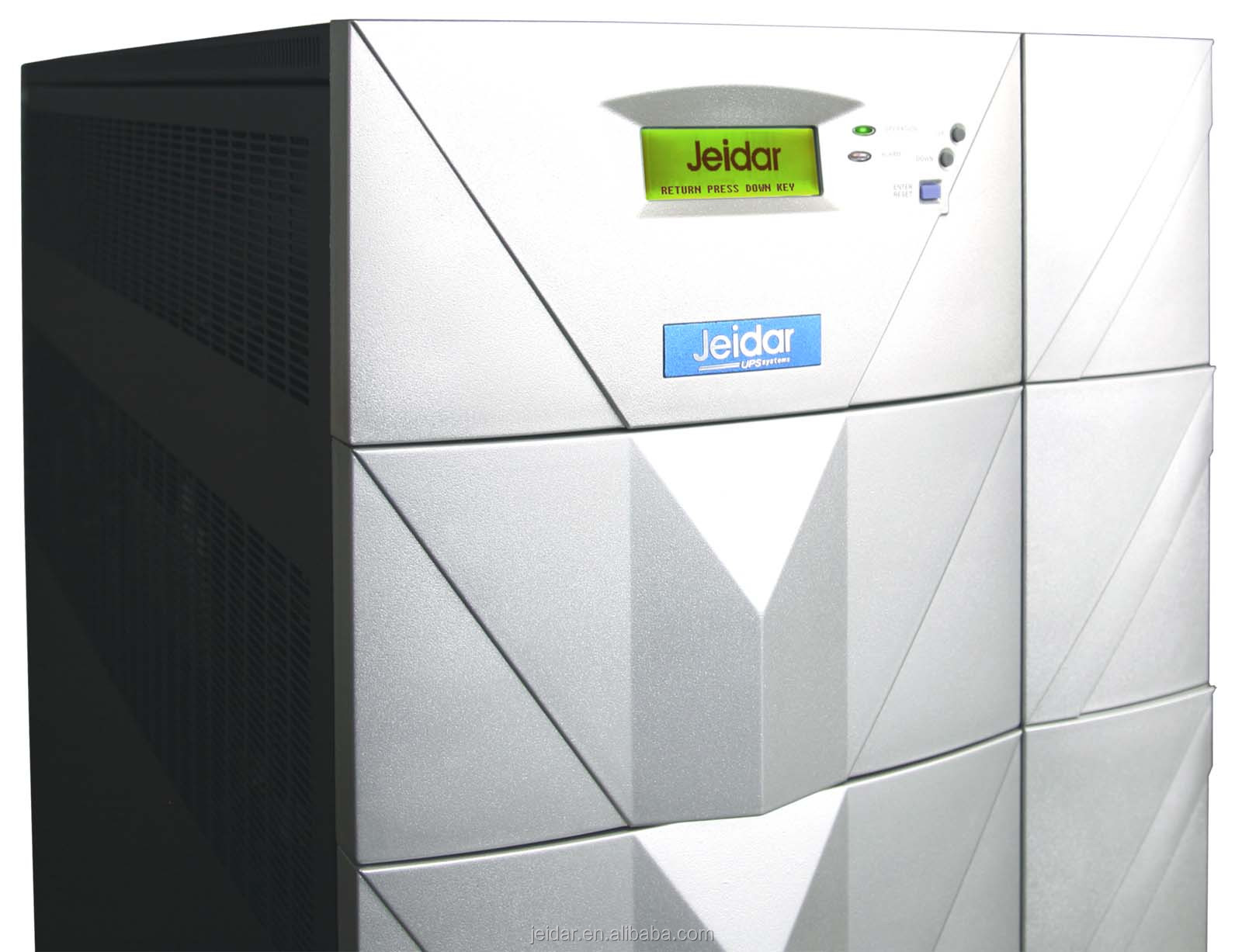

Front Panel View

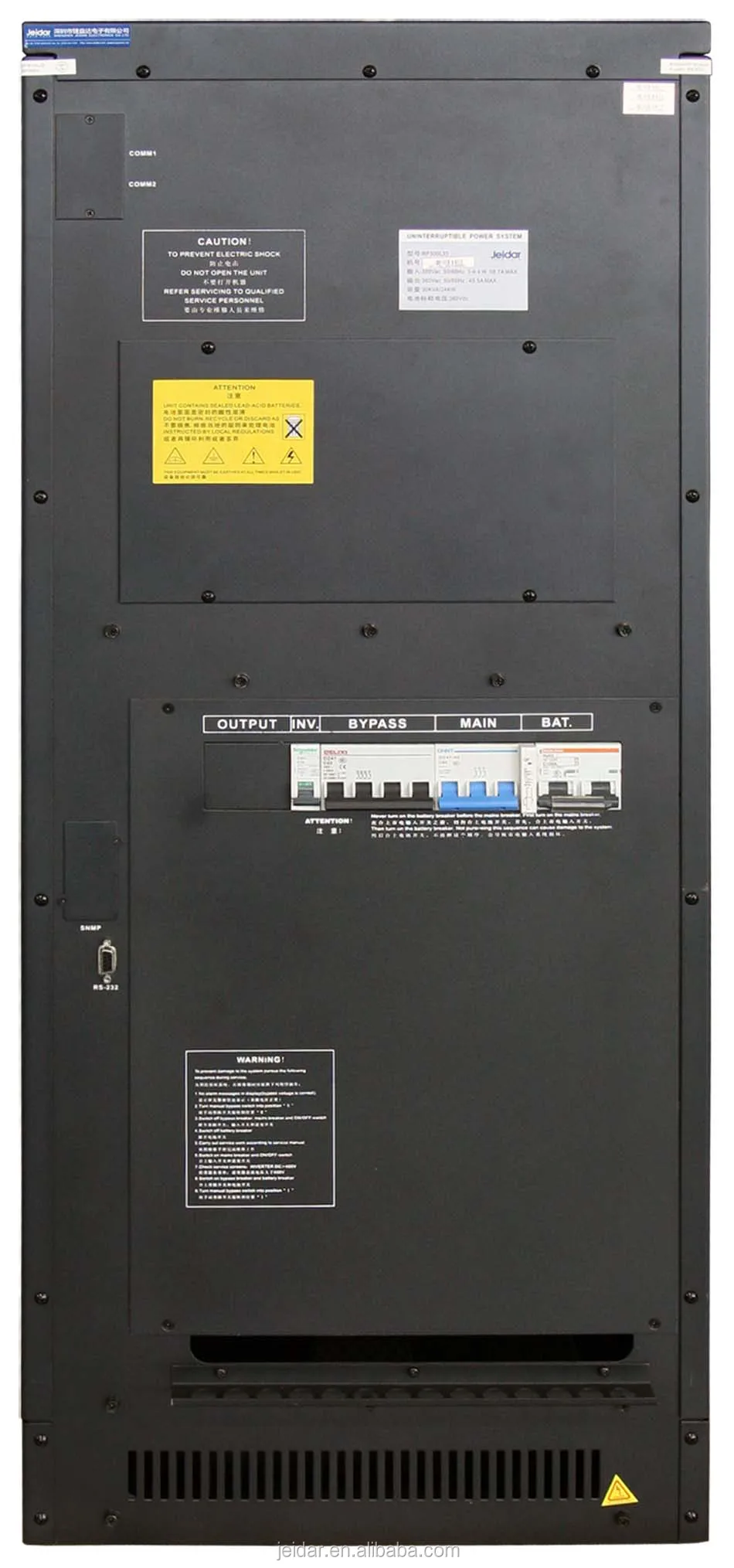

Rear Panel View
Testing Process by our engineer
Host Machine Parameters
Overall efficiency(full load)
Overload, short circuit, over temperature, mains over high/low, battery over high/low
LCD(192×64 dot matrix display, over 200 faults information)+LED
Input voltage range
Input frequency range
Output Power factor
Output voltage stability
380±1% (static load), 380±3% (100-0% load change)
< 1%(with full linear load),< 5%(100% non linear load)
Pure sine wave
>120% load for 10 minutes, >150% load for 1minute turn to bypass and shutdown
Static bypass input voltage
380Vac±15%(±15%,±10% can be set up on the panel)
Static bypass transfer time
0ms(Static switch phase lock control technology)
±5%(±5%,±2% can be set up on the panel)
360Vdc(30 units, 12Vdc)
Communication Interface Parameters
60KVA:550x 1380x 985
Note:“L”stands for long run type , “33” stands for 3 phase in/ 3 phase out.
