low frequency cyber power online UPS 1 2 3 6 10kva

FOB Reference Price:Get Latest Price
1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jeidar
Phase:
Single Phase
Protection:
Overload Protection, Unbalanced Loads, Over Voltage, Short-Circuit
Output Voltage:
220/230/240Vac (+1% or -1%)
Type:
On-line
Application:
Telecommunications
Series:
JY-Series
Transfer Time:
0ms
Wave Form:
Pure Sine Wave
UPS Structure:
Transformed Based
Standards:
IEC62040,EN 50091-2
Certification:
Exterior Design Patent, TLC, Energy Conservation Certification
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Jeidar UPS Wooden Carton/ Standard Boxes, OEM Carton, Netural Brand Carton
Port
Shenzhen
Lead Time :
14 Business after payment confirmation

Specifications

CPU, CPLD Full Digitized Control
Intelligent SCR+IGBT Rectifier Technology
Parallel Redundancy Feature (Optional)
ECO Mode



Product Description

1. High Performance Index

    a) Advanced IGBT Rectifier and Inverter Technology. Online Single Phase Input/Output double conversion structure to adapt 220V and 50/60 Hz Mains Grid Supply Systems.

    b) Wide Input Range from 160 Vac to 300 Vac and 50/60Hz ± 5%. High Adaptive Capacity to Mains Grid Supply System and Different kind of Loads. High Overload Ability -- surge current protection technology can carry the sudden impact due to 0% to 100% load immediately without transfer to bypass.

    c) Intelligent Fault Diagnosis system with large storage memory of fault histories.

    d) Friendly and Intuitive User Interface. Large LCD+LED Screen with multi-functional keyboard to check system parameters, such as fault histories, operational statuses, self-diagnosis, etc.



2. Safe and Reliable

    a) JY Series UPS use CPU+ CPLD full-digitized control to operate all power conversion sessions during the operations, which has higher system reliability than traditional UPS systems.

    b) Output Isolated Transformer Built-in. It can reduce impacts and interferences from Load Harmonic Wave Current and N-Wire Voltage.

    c) 90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.


3. Various Optional Accessories.

    a) Multiple communication interfaces integrated (RS232, RS485, Dry Contact, EPO, Etc.)

    b) Optional Parallel Redundancy Accessories and SNMPcommunication adapter available.



4. Technologies

l         Multiple CPU+CPLD Full-Digitized Control to increase system consistency and reliability.

l         Wide Input Voltage and Frequency Range

l         High Loads Compatibility and Output Overload Ability to ensure safety

l         User Friendly and Intuitive Dot Matrix LCD+LED Screen

l         Double Conversion Online technology and Output Isolated Transformer can isolate any possible interferences from Mains Input Power or Generators to Loads

Product Pictures

Overall View

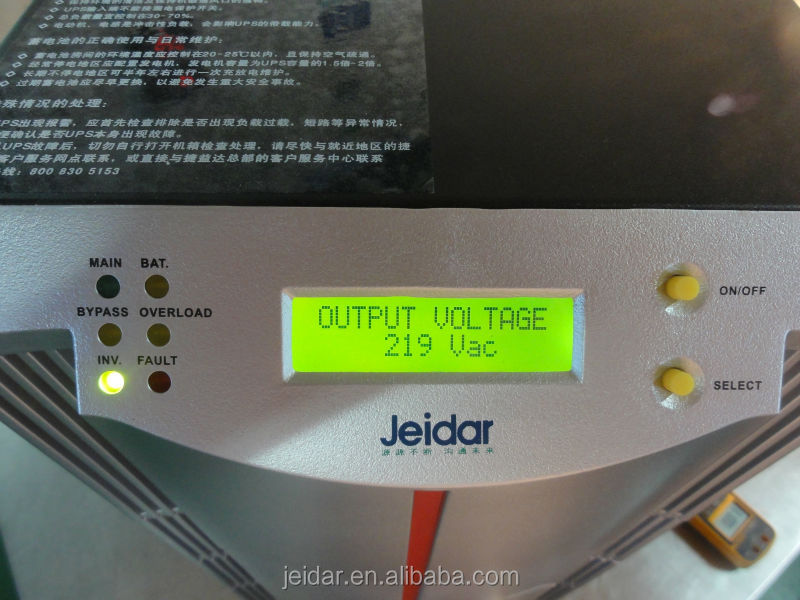

Front Panel View

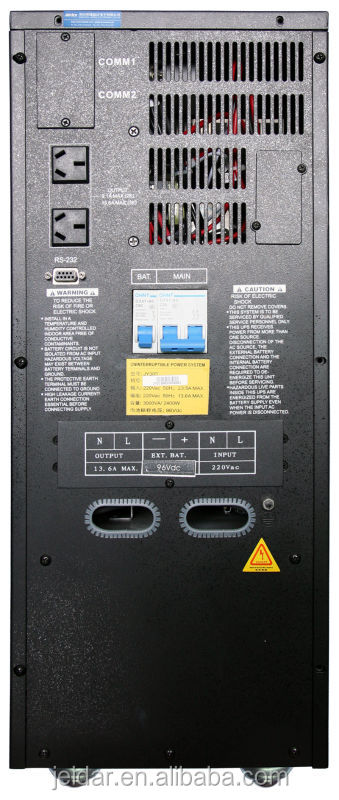

Rear Panel View
Specifications

Product Model

JY10S/JY10L

JY20S/JY20L

JY30S/JY30L

JY60S/JY60L

JY100L

/

JY20L-RM

JY30L-RM

JY60L-RM

/

Capacity

1KVA/0.8KW

2KVA/1.6KW

3KVA/2.4KW

6KVA/4.8KW

10KVA/8KW

Host Machine Parameters

Parallel Redundancy

N+1

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

Display

LCD(Dot Matrix Chinese/ English Display)+LED

Rectifier Parameters

Nominal Input Voltage

220Vac

Input Voltage Range

160-300Vac

Input Frequency Range

50 Hz±5%(45-65Hz)

Inverter Paramters

Nominal Output Voltage

220Vac

Output Power Factor

0.8

Output Frequency

50Hz±0.1%(Battery Mode)

Distortion

< 1%(100% Linear Load),< 3%(100% Non-Linear Load)

Output Wave Form

Pure Sine Wave

Overload

125% Load > 1 Min; > 150% Load >30s

Bypass Parameters

Static Bypass Transfer Time

0ms(Static Switch Phase Lock Technology)

Battery Parameters

Battery Voltage

48Vdc

96Vdc

96Vdc

192Vdc

192Vdc

Charging Current

1,5,10A

Communication Interface Paramters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Physical Parameters

Size mm(W×H×D)

Standard

230×625×565

230×625×640

/

Long-Run

230×525×390

230×625×560

310×675×890

Rack Mount

482×540×178/4U

482×540×266/6U

/

Net Weight Kg

45/28

60/31

61/32

108/79

148

/

31

32

60

/

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount
