6kva low frequency online UPS Long Run Type

FOB Reference Price:Get Latest Price
  • 1 - 29 Pieces
    US $421.00
  • >=30 Pieces
    US $413.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
Jeidar
Model Number:
JY60L
Phase:
Single Phase
Protection:
Overload Protection, Unbalanced Loads, Over Voltage, Short-Circuit
Weight:
79 Kg
Output Voltage:
220/230/240Vac (+1% or -1%)
Type:
On-line
Application:
Telecommunications
Series:
JY-Series
Transfer Time:
0ms
Wave Form:
Pure Sine Wave
UPS Structure:
Transformed Based
Standards:
IEC62040,EN 50091-2
Certification:
Exterior Design Patent, TLC, Energy Conservation Certification
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Jeidar UPS Wooden Carton/ Standard Boxes, OEM Carton, Netural Brand Carton
Port
Shenzhen
Lead Time :
14 Business after payment confirmation



Product Description

1. High Performance Index



  • Advanced SCR Rectifier and IGBT Inverter Technology. Online 1/1 or 3/1 double conversion structure.
    Adapt with output isolated transformer technology to fit 200,220,230,240Vac,50/60Hz Grid Systems;
  • Wide Input Range from Single Phase 160-280Vac, 50/60 Hz±5%,High Adaptive Capacity to Mains Grid
  • High Overload Ability -- surge current protection technology to carry sudden impact for 0% to 100% load immediately without transfer to bypass;
  • Overall Efficiency 85%. 98% under ECO Mode;
  • Full-Digitized Non-master slave parallel redundancy technology. Parallel circumfluence ≤5%;
  • Intelligent Charging Design. It equips with BAT low/over charged sensor to protect the charger. Real-time diagnosis on Battery status and response data simultaneously;
  • Large Color Dot-matrix LCD+LED Screen with multi-functional keyboard to check system parameters, such as fault histories, operational statuses self-diagnosis periodically discharge settings, etc.
  • Battery Self-testing can be done on the LCD directly. Battery Capacity, UPS working mode (Online or ECO) can be set on the screen. All history faults and statistics can be seen on the screen to help user analyze the working summary of the UPS.
  • Monitoring can be done by WAN/LAN SNMP adapter or Cloud Monitoring Adapter. UPS equips with RS232, USB, EPO ports, and can choose RS485 and Dry-contact as optional accessories.
    Front to Rear Ventilation Design to reduce the defective rate of the product.



2. Safe and Reliable

  • MCU control to operate all power conversion sessions during the operations, which has higher system reliability than  traditional UPS systems.
  • Output Isolated Transformer Built-in. It can reduce impacts and interferences from Load Harmonic Wave Current and N-Wire Voltage.
  • Special Design on battery connectors to save the shock hazards from mis-operation;
  • 90% of system components are from international brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.



3. Various Optional Accessories.

    a) Multiple communication interfaces integrated (RS232, RS485, Dry Contact, EPO, Etc.)

    b) Optional Parallel Redundancy Accessories and SNMPcommunication adapter available.



4. Technologies

l         Multiple CPU+CPLD Full-Digitized Control to increase system consistency and reliability.

l         Wide Input Voltage and Frequency Range

l         High Loads Compatibility and Output Overload Ability to ensure safety

l         User Friendly and Intuitive Dot Matrix LCD+LED Screen

l         Double Conversion Online technology and Output Isolated Transformer can isolate any possible interferences from Mains Input Power or Generators to Loads

Product Pictures
6KL 01.png

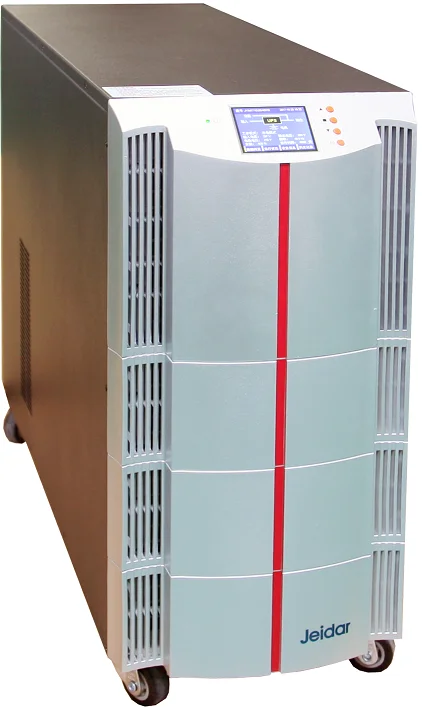

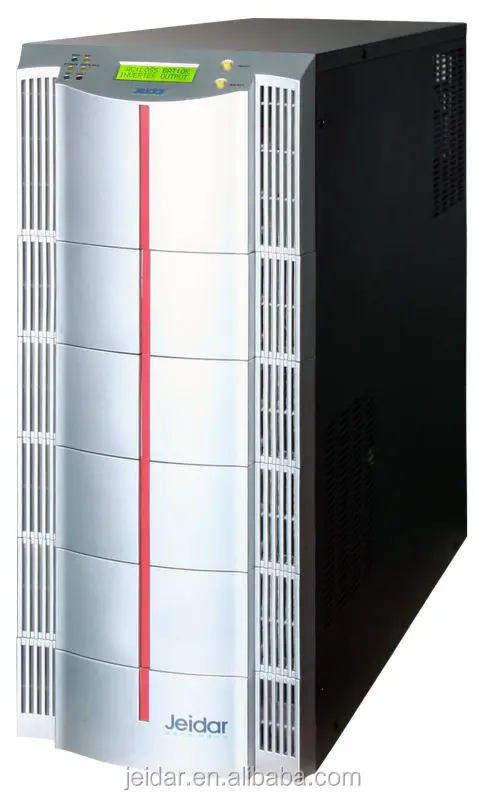

Overall View

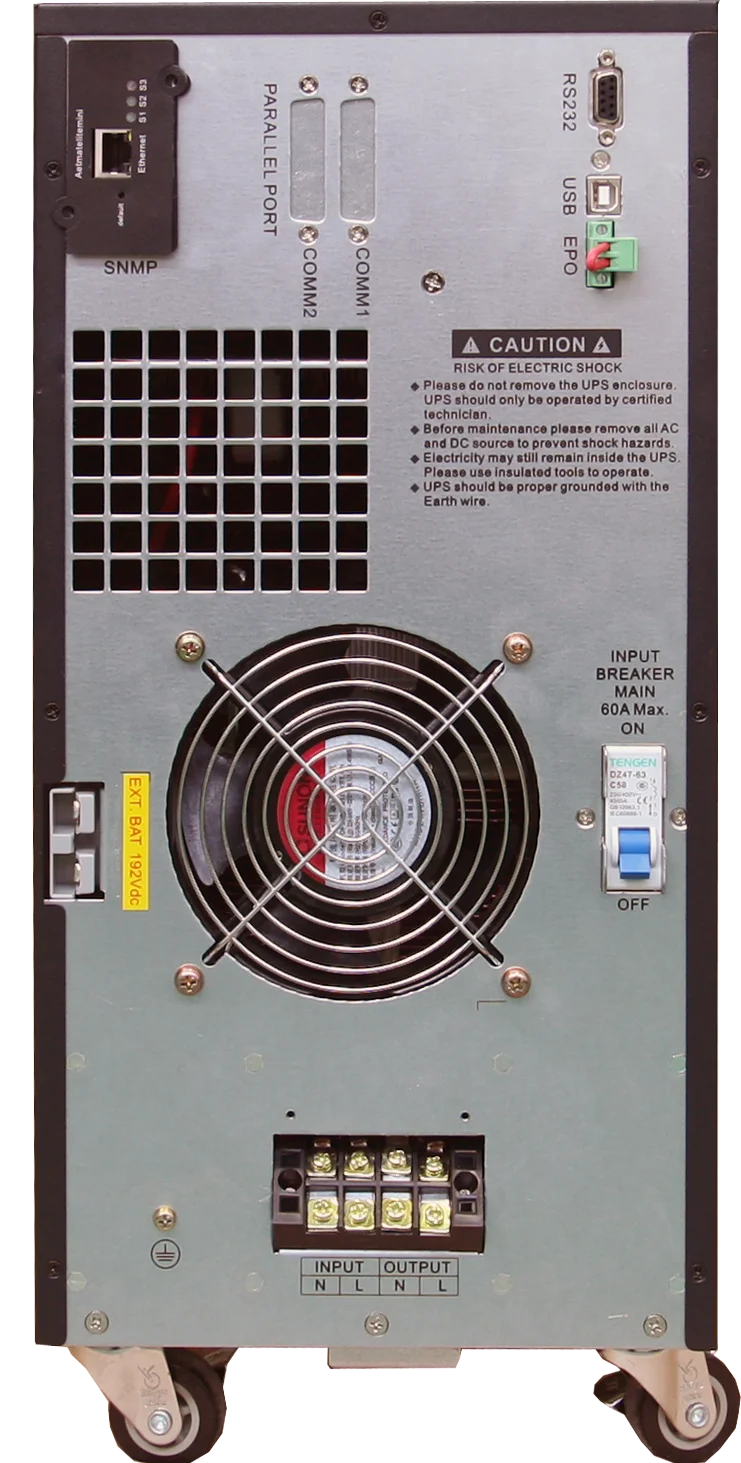

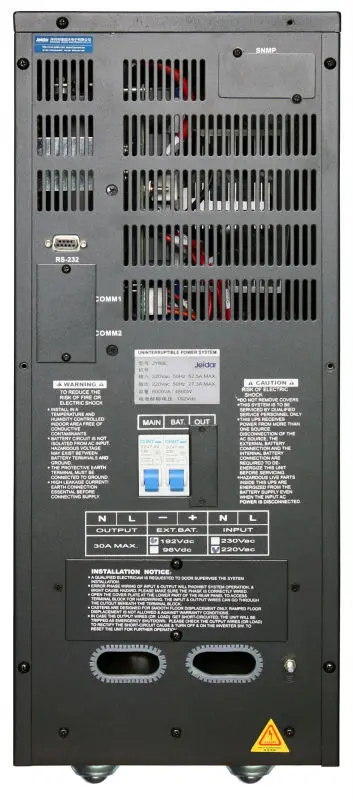

Rear Panel View
Specifications

Product Model

JY60L

Capacity

6KVA/4.8KW

Host Machine Parameters

Parallel Redundancy

N+1

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

Display

LCD(Dot Matrix Chinese/ English Display)+LED

Rectifier Parameters

Nominal Input Voltage

220Vac

Input Voltage Range

160-300Vac

Input Frequency Range

50 Hz±5%(45-65Hz)

Inverter Parameters

Nominal Output Voltage

220Vac

Output Power Factor

0.8

Output Frequency

50Hz±0.1%(Battery Mode)

Distortion

< 1%(100% Linear Load),< 3%(100% Non-Linear Load)

Output Wave Form

Pure Sine Wave

Overload

125% Load > 1 Min; > 150% Load >30s

Bypass Parameters

Static Bypass Transfer Time

0ms(Static Switch Phase Lock Technology)

Battery Parameters

Battery Voltage

192 std., 96Vdc optional

Charging Current

1,5,10A

Communication Interface Parameters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Physical Parameters

Size mm(W×H×D)

Long-Run

230×525×560

Net Weight Kg

79

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount
