3KVA High Frequency Online UPS External Battery

FOB Reference Price:Get Latest Price
  • 1 - 29 Pieces
    US $160.00
  • >=30 Pieces
    US $155.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JEIDAR or OEM
Model Number:
BH30L
Phase:
Single Phase
Protection:
Overvoltage
Weight:
11.5Kg
Output Voltage:
200/208/220/230/240VAC
Type:
On-line
Application:
Instrumentation
Series:
BH Series
Transfer Time:
0ms
Wave Form:
Pure Sine Wave
UPS Structure:
Transformerless
Standards:
CE
Certification:
CE, TLC, Energy Saving Certification
Supply Ability
Supply Ability:
10000 Set/Sets per Month
Packaging & Delivery
Packaging Details
Jeidar UPS Wooden Carton/ Standard Boxes, OEM Carton, Netural Brand Carton
Port
Shenzhen
Lead Time :
14 business days after deposit



Product Description

1. High Performance Index

  • BH-Series uses latest high frequency switching power supply rectifier and DSP technology to comprehensively control input PFC (Power Factor Correction) circuit. It leads input power factor up to 0.99, input THDI≤3.5%
  • Wide Input Range from 160~300Vac on full load (100% Load, If Load is below 50%, it can be reached even equal or lower than 115Vac). This greatly reduces the frequency of battery use, and extends battery life time.
  • BH-Series adopts the fifth generation IGBT technology to achieve non-linear load correction and high overall efficiency up to 90%. Online Single Phase Input/Output double conversion structure to adapt 220/230/240V and 50/60 Hz Mains Grid Supply Systems.
  • Powerful overload ability with output short circuit protection technology:  1-3 KVA: 120% overloads for 1 minute. 150% for 60ms transfer to bypass and alarm. 6-10KVA: 105-130% overload for 10 minutes, >130% overload for 60ms.
  •  Systems have parallel redundancy feature to increase the system reliability level.
  •  Generator capability to lower down user’s costs.
  •  Intelligent temperature compensator and low wave charger can extend battery lifetime.
  • BH-Series has dual LCD and LED display panels, which comprehensively and intuitively reflect the state of power system statuses, parameters, and other information. Users can modify and operate based on individual needs on these friendly displays.
  • BH-Series has another 19’’ inch Rack Mount structure design. It can be compatible with standard communication cabinet to greatly save data room spaces.



2. Safe and Reliable

  • BH Series adapts DSP technology to control UPS all kinds of power function processes (including Parallel function) in order to increase system reliability.
  • BH-Series adapts sensitive peak current protection circuit design to protect the system from damages due to short-circuit, cold load impacts.
  • 90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.


3. Various Optional Accessories.

BH Series can use SNMP Network Adapter, RS485/Dry Contact, USB port, and EPO function to build up a LAN or WLAN remote control and monitoring system.



4. Technologies

  • Full-Digitized DSP Control to enhance system integration and reliability.
  • Wide Input Voltage and frequency range to increase the high capability to utility power grid.
  • All Digital Non-Prioritized Parallel Redundancy Current Equalization Technology.
  • Advanced Battery Management System to extend battery lifetime.
  • High Loads Compatibility and Output Overload Ability to ensure safety
  • Dot-Matrix LCD display panels, which comprehensively and intuitively reflect the state of power system statuses, parameters, and other information.
Product Pictures
2-3K 01.png

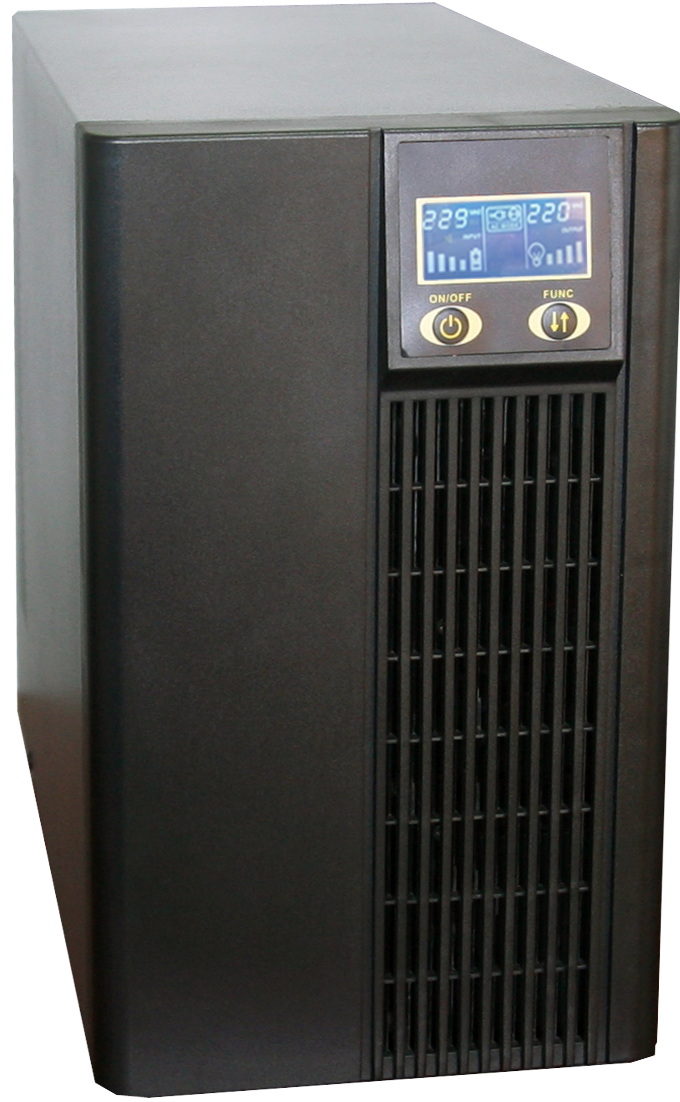

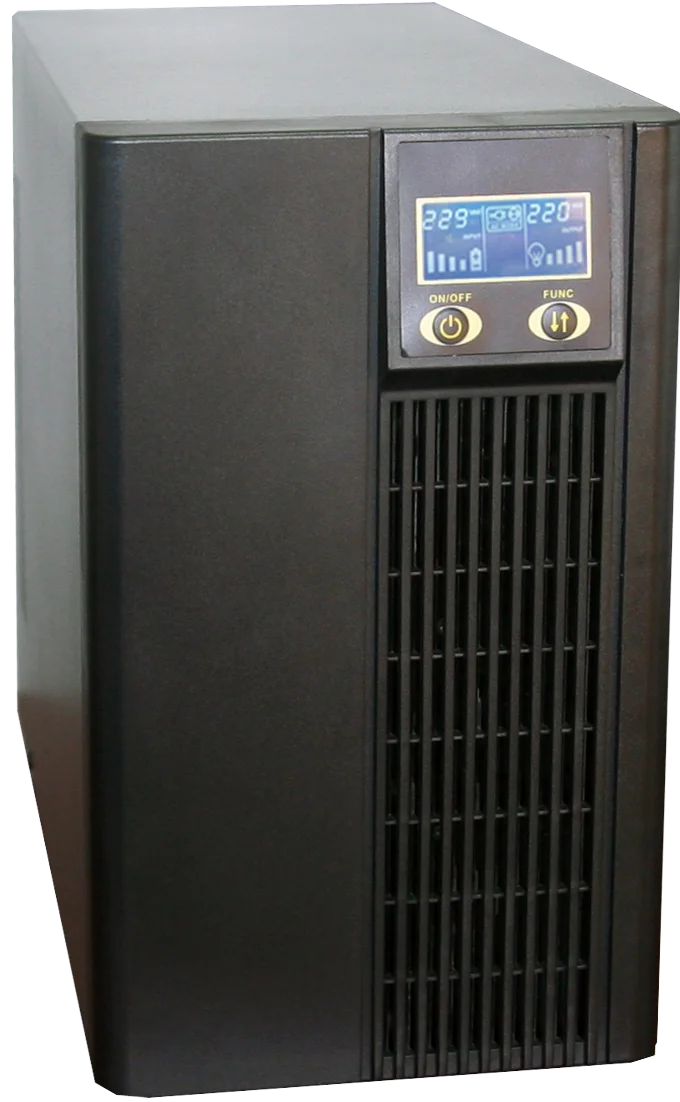

Overall View
2-3K 03.png

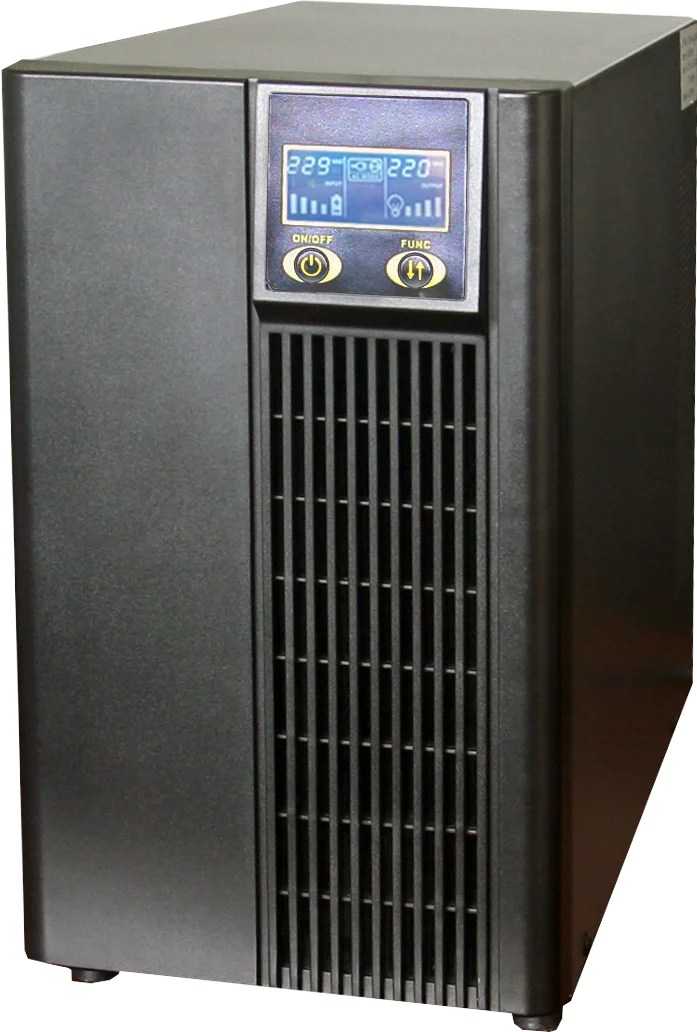

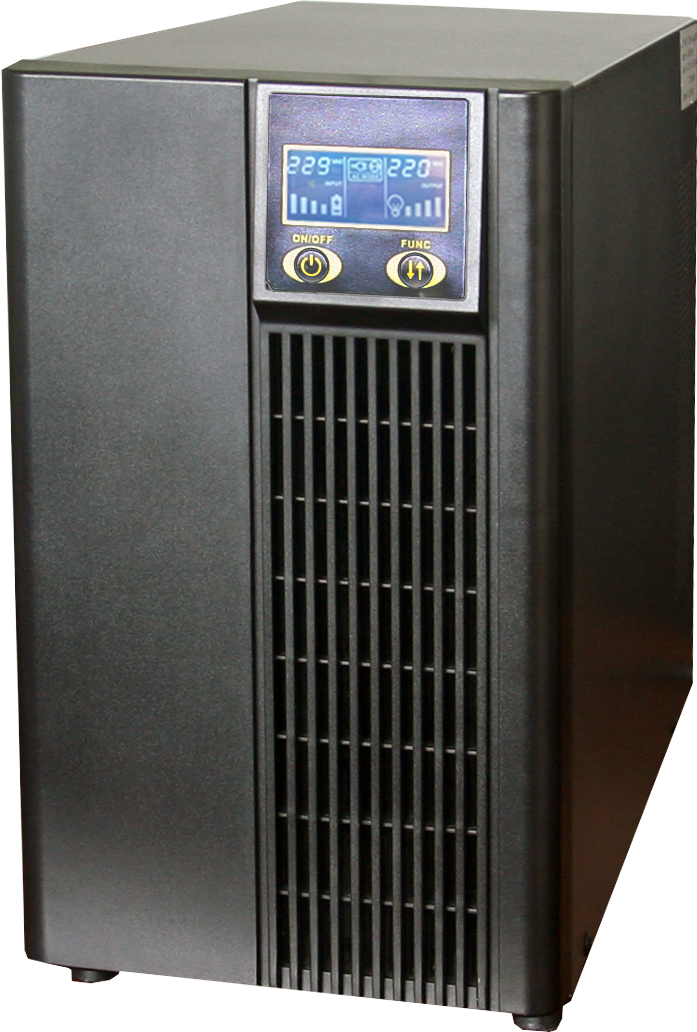

Front Panel View

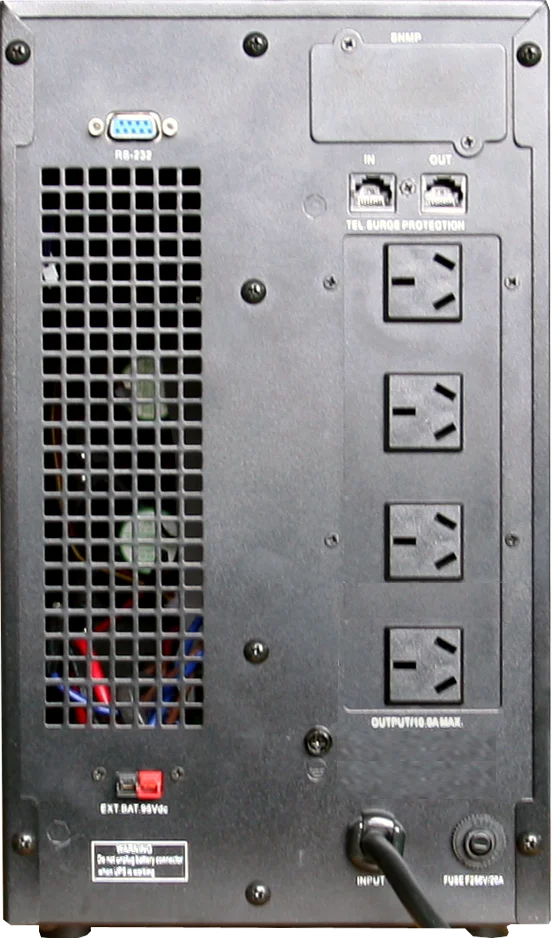

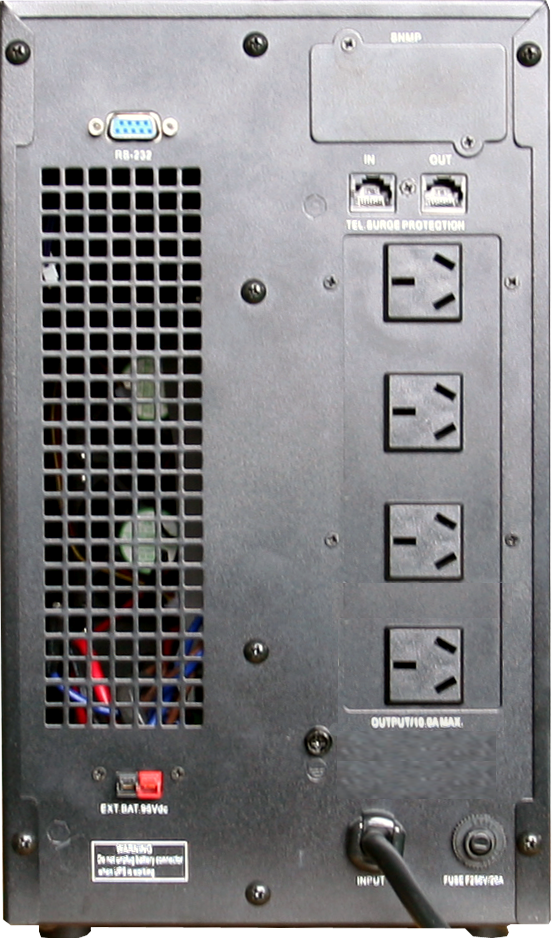

Rear Panel View (Output Sockets can be changed, RJ45 is optional)
Specifications

Product Model

BH30L

Capacity

3KVA/2.4KW

Host Machine Parameters

Parallel Redundancy

N+1

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

Display

LCD(Mimic English Display)+LED

Rectifier Parameters

Nominal Input Voltage

220Vac

Input Voltage Range

115-300Vac

Input Frequency Range

50 Hz±5%(45-65Hz) Auto Tracking

Inverter Parameters

Nominal Output Voltage

200/208/220/230/240Vac

Output Power Factor

0.8, 0.9 optional

Output Frequency

50Hz±0.1%(Battery Mode)

Distortion

< 1%(100% Linear Load),< 3%(100% Non-Linear Load)

Output Wave Form

Pure Sine Wave

Overload

125% Load > 1 Min; > 150% Load >30s

Bypass Parameters

Static Bypass Transfer Time

0ms(Static Switch Phase Lock Technology)

Battery Parameters

Battery Voltage

96Vdc

Charging Current

5A

Communication Interface Parameters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Physical Parameters

Size mm(W×D×H)

Long-Run

190×433×318

Net Weight Kg

11.5

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount
