Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: JEIDAR
  • Model Number: BH60S
  • Phase: Single Phase
  • Protection: Overvoltage
  • Weight: 57Kg
  • Output Voltage: 200/208/220/230/240VAC
  • Type: On-line
  • Application: Instrumentation
  • Color: Black
  • Efficiency AC/AC: 90%
  • Distortion: <2%
  • Input frequency: 46~54Hz(Auto selection)
  • Waveform: Pure sine wave
  • Transfer time: 0Ms
  • DC start: yes
  • Battery voltage: 240Vdc
  • SNMP: Optional
  • Safety standard: CE IEC62040

Packaging & Delivery

Packaging Details overseas standard packing
Delivery Time 15-18 days after all details confirmed



Product Description

1. High Performance Index

  • BH-Series uses latest high frequency switching power supply rectifier and DSP technology to comprehensively control input PFC (Power Factor Correction) circuit. It leads input power factor up to 0.99, input THDI≤3.5%
  • Wide Input Range from 160~300Vac on full load (100% Load, If Load is below 50%, it can be reached even equal or lower than 115Vac). This greatly reduces the frequency of battery use, and extends battery life time.
  • BH-Series adopts the fifth generation IGBT technology to achieve non-linear load correction and high overall efficiency up to 90%. Online Single Phase Input/Output double conversion structure to adapt 220/230/240V and 50/60 Hz Mains Grid Supply Systems.
  • Powerful overload ability with output short circuit protection technology:  1-3 KVA: 120% overloads for 1 minute. 150% for 60ms transfer to bypass and alarm. 6-10KVA: 105-130% overload for 10 minutes, >130% overload for 60ms.
  •  Systems have parallel redundancy feature to increase the system reliability level.
  •  Generator capability to lower down user’s costs.
  •  Intelligent temperature compensator and low wave charger can extend battery lifetime.
  • BH-Series has dual LCD and LED display panels, which comprehensively and intuitively reflect the state of power system statuses, parameters, and other information. Users can modify and operate based on individual needs on these friendly displays.
  • BH-Series has another 19’’ inch Rack Mount structure design. It can be compatible with standard communication cabinet to greatly save data room spaces.



2. Safe and Reliable

  • BH Series adapts DSP technology to control UPS all kinds of power function processes (including Parallel function) in order to increase system reliability.
  • BH-Series adapts sensitive peak current protection circuit design to protect the system from damages due to short-circuit, cold load impacts.
  • 90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.



3. Various Optional Accessories.

BH Series can use SNMP Network Adapter, RS485/Dry Contact, USB port, and EPO function to build up a LAN or WLAN remote control and monitoring system.



4. Technologies

  • Full-Digitized DSP Control to enhance system integration and reliability.
  • Wide Input Voltage and frequency range to increase the high capability to utility power grid.
  • All Digital Non-Prioritized Parallel Redundancy Current Equalization Technology.
  • Advanced Battery Management System to extend battery lifetime.
  • High Loads Compatibility and Output Overload Ability to ensure safety
  • Dot-Matrix LCD display panels, which comprehensively and intuitively reflect the state of power system statuses, parameters, and other information.
Product Pictures

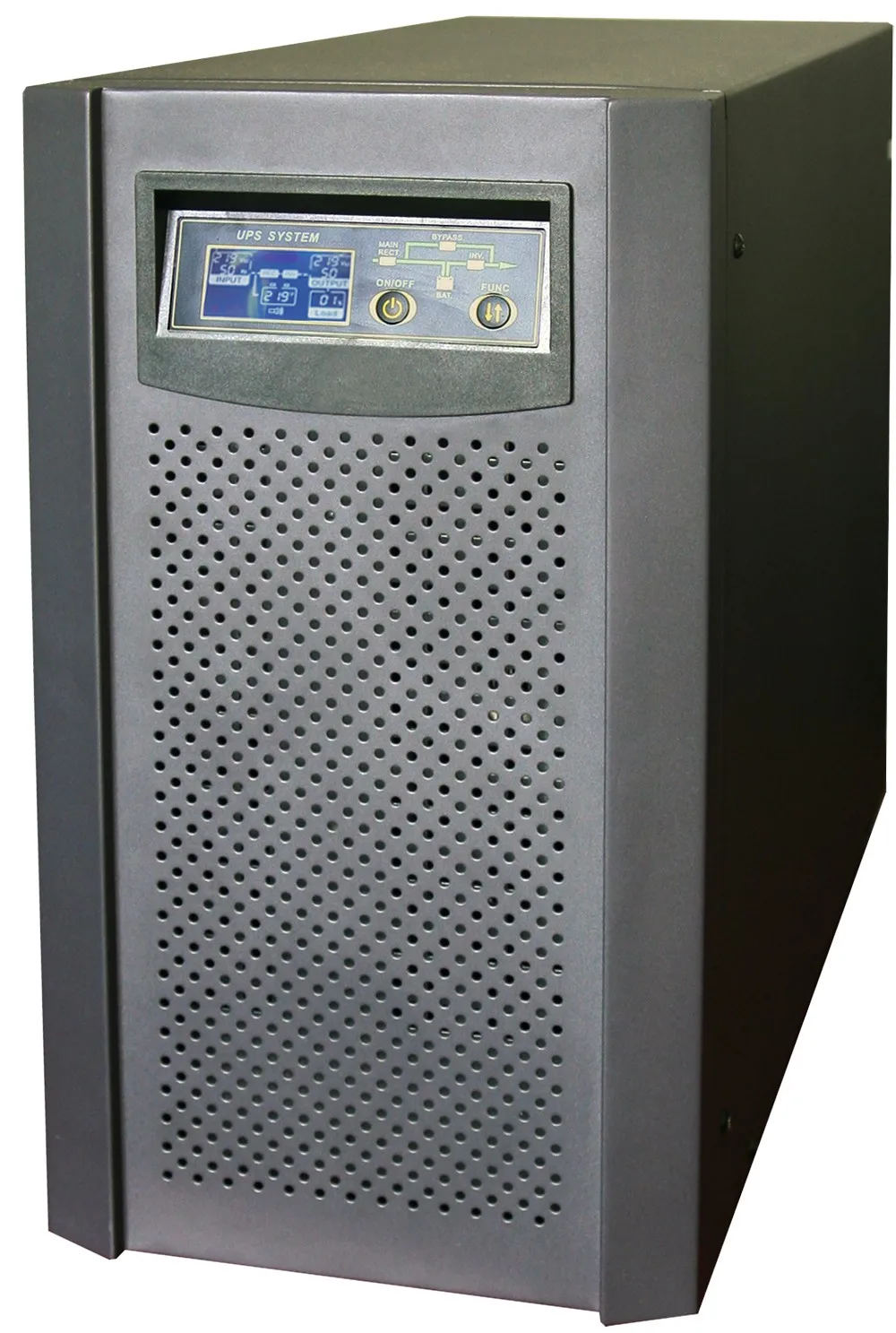

Overall View

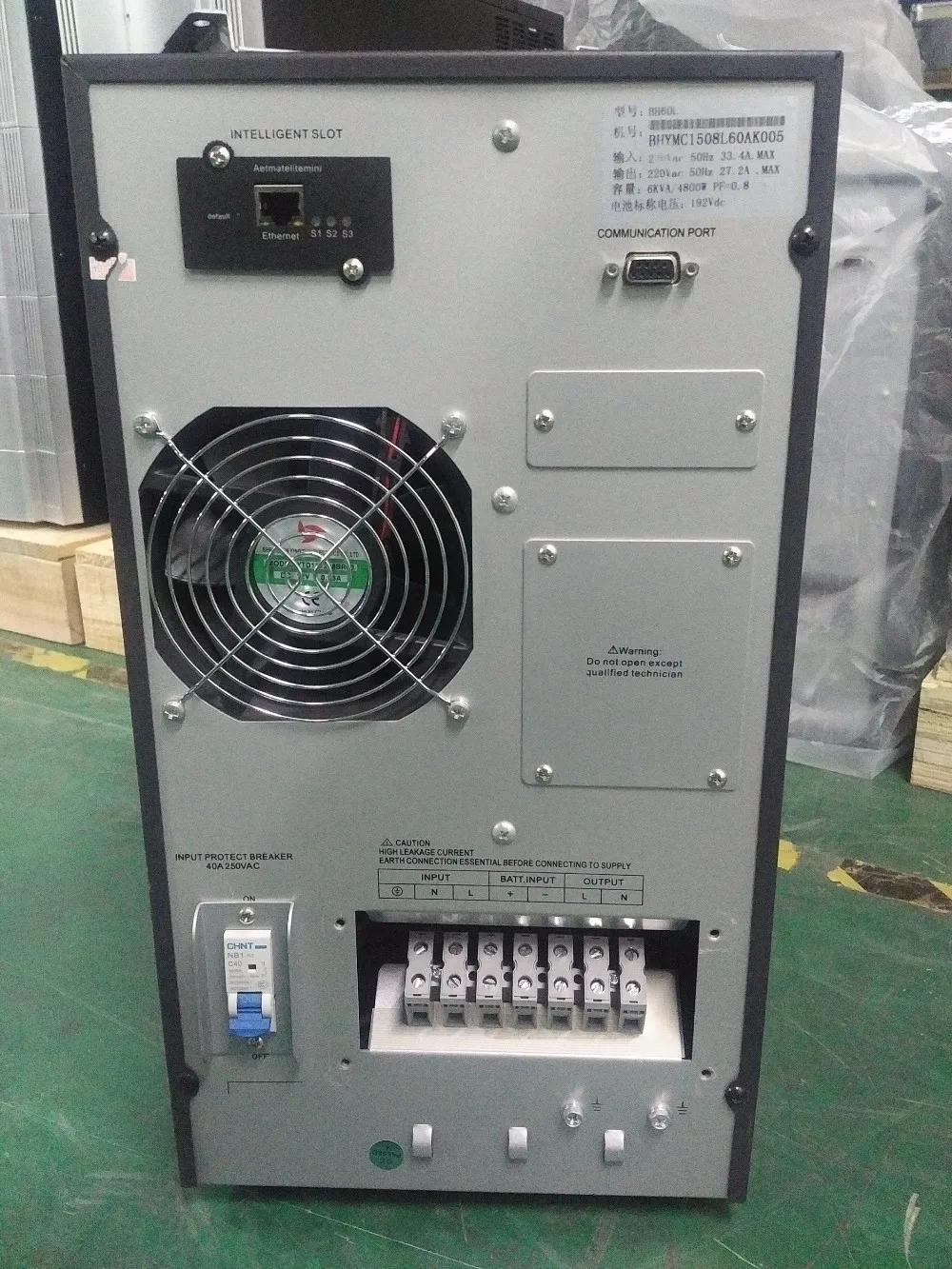

Rear Panel View
Specifications

Product Model

BH60S

Capacity

6KVA/4.8KW

Host Machine Parameters

Parallel Redundancy

N+1

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

Display

LCD(Mimic English Display)+LED

Rectifier Parameters

Nominal Input Voltage

220Vac

Input Voltage Range

115-300Vac

Input Frequency Range

50 Hz±5%(45-65Hz) Auto Tracking

Inverter Parameters

Nominal Output Voltage

220Vac

Output Power Factor

0.8, 0.9 optional

Output Frequency

50Hz±0.1%(Battery Mode)

Distortion

< 1%(100% Linear Load),< 3%(100% Non-Linear Load)

Output Wave Form

Pure Sine Wave

Overload

125% Load > 1 Min; > 150% Load >30s

Bypass Parameters

Static Bypass Transfer Time

0ms(Static Switch Phase Lock Technology)

Battery Parameters

Battery Voltage

192Vdc

Charging Current

1-2A

Communication Interface Parameters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Physical Parameters

Size mm(W×D×H)

Long-Run

240×500×620

Net Weight Kg

57

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount



Company Information



l         Established in 1993, Jeidar has been specialized in the research, manufacture, sales and services of UPS productions for more than 20 years.

l         Jeidar has been honored as national and Shenzhen High-tech enterprise recognized by Chinese Government.

l         Customers from various industries including finance, tax, securities, insurance, postal services, telecommunications, transportation, public security, electricity, education, military and other large users with trust and praise.

l         Jeidar UPS believes in advanced technology, high reliability and high availability, quality, cost-effective and outstanding service.

l         Strong and Innovative R&D Department to handle different types of UPS Projects. We are not just selling UPS; We are power supply solution provider.

l         Fast response service team. We are always ready to serve you.

l         Experienced Overseas Sales Department. Our team members are coming from all around the world (United Kingdom, United States) with high educational background (Masters, Cornell University, University of Southern California, etc.)

"Your Satisfaction, Our Motivation" is Jeidar commitment to all our customers. Customers can follow our official website and other social media platforms for technical supports, power solutions, and other related consulting with our Jeidar Power Specialists:

l         Comprehensive Project requirements and specification consulting

l         Installation Instructions

l         Technical Supports

l         Roadmap for specific customizations

Certifications



TUV Certification

National High-Tech Enterprise Certification

TLC Certification

Packaging & Shipping

Packaging: Standard Safety Export Wooden Transportation Package.
Delivery Date: 3 Weeks After Payment (Deposit) has been received deposit. Delivery Date will be varied according to actual order quantity and customizations.

Product Labels



Package Top View



Exteranal Packaging View

Carrier Delivery View
