Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Jeidar
  • Model Number: HI
  • Phase: Single Phase
  • Protection: Overvoltage
  • Weight: 2.6kg
  • Output Voltage: 220V ±1%
  • Type: Line Interactive
  • Application: Home
  • Product name: 720W 12v high frequency ups with 220v output
  • Single phase Input Voltage Range: 162V~290Vac
  • Output voltage: 220V ac( battery mode), 220v±10% (ac mode)
  • Wave Form: Modified Sine Wave( battery mode)
  • Overall Efficiency at full load: >95%
  • DC to AC Efficiency: >80%
  • Rated Voltage of Battery: 12Vdc
  • Dimension: 288*272*90mm
  • Certificate: ISO9001
  • Warranty: 1 Year

Packaging & Delivery

Packaging Details Export Carton Package
Delivery Time 15 working days
Product Description

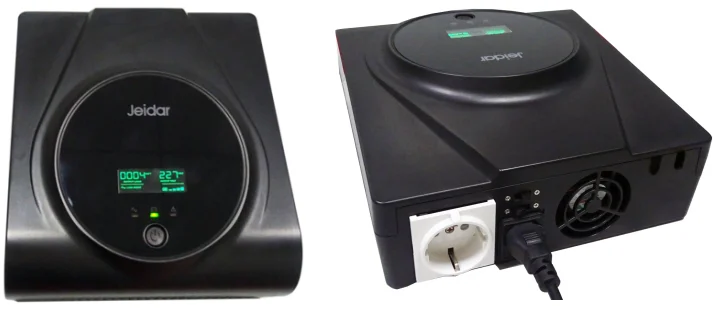

720W 12V high frequency home ups with 220v output







Features of high frequency 720w 12v home ups





• MCU Controlled High Frequency Full Digitized Design.



• High Frequency rate of DC-AC Conversion to minimize energy losts. Modified Sine Wave Output.



• All devices aged and tested for at least 24 hours before package.



• Wide Input Voltage Range with Single phase 162~290V. Low Noise in Operation.



• LCD Display with  LED Indicator with Complete UPS Status.



• Offline-Charging Function. Auto-recovery to AC Mode when Utility Power is recovered.



• Excellent Overalod, Over Voltage, Short Circuit, Over Temperature and Low Voltage Protection. RT Design.



• Intelligent charge control. Equipped with super charger. Maximum Charging Current:  8-20A



  Charge large capacity batteries like 100Ah.



Application of Home UPS









Technical Specification





1Product Name720W 12V home ups inverter
Host Machine Specification
2.1UPS StructureTower or Rack Mount
2.2Overall Eficiency>95%
2.3Working Temperature0~40℃
2.4Storage Temp-25~60℃ (without battery)
2.5Humidity<95% Non-Condensing
2.6ProtectionOverload, Short-Circuit, Over-temp, Utility Power Voltage High/Low, Battery Voltage High/Low
2.7DisplayLCD /LED, AC Mode with Green Light,BAT Mode with Yellow Light
Input
3.1Rated Voltage220/230/240Vac
3.2Input Voltage Range162-290Vac , 90~290Vac
3.3Frequency50Hz
Output
4.1Single Phase Output Voltage220Vac( battery mode),220Vac±10% (ac mode)
4.2Output Freq.(Online Mode)50Hz±1Hz
4.3Output Wave FomrModified Sine Wave(battery mode)
4.4Transfer Time> 12ms
4.5Inverter Efficiency>80%
Battery
5.1Rated Volts12V/dc
5.2Charging Voltage13.7Vdc
5.3Charging Current10~20A adjustable
Alarm
6.1AlarmLow voltage(battery mode),beeps once every 2 seconds;Overload beeps twice every 1second;faults continuous beeping
Physical Parameter
7.1Size mm(W×H×D)288×272×90
7.2Net Weight Kg2.6



Company Information







CE& ISO9001:2008 & ISO 14001 & OHSAS Certificates











Meet us at Global Exhibition / CeBIT Hannover / Dubai / Singapore / CES /  Russia SVIAZ EXPOCOMM









FAQ

 1. How to choose suitable Homw UPS / Inverter with Charger?



   Please do not hesitate to send your inquiry and got  timely & professional answers and solution.



2. What is your MOQ? And the Warranty



    MOQ is One Set. 1 Years Warranty.



3. Factory or Trading Copany? Any Service Center around the World ?



  Welcome your agent or any third party  in China to visit our factory for site inspection.



   Service Center is under processing.
