3/3 Phase Online Hot-Swappable Modular 30KVA

FOB Reference Price:Get Latest Price
  • 1 - 9 Pieces
    US $1526.00
  • >=10 Pieces
    US $1450.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JEIDAR or OEM
Model Number:
MT 30Kva
Phase:
Three Phase
Protection:
Overvoltage
Weight:
33KG
Output Voltage:
Line Voltage:380*(1±1%)AC or Phase Voltage:220*(1±1%)AC
Type:
On-line
Application:
Instrumentation
Series:
MT Series
Capacity:
30KVA
Wave Form:
Pure Sine Wave
UPS Structure:
Transformerless
Standards:
CE
Certification:
CE, TLC, Energy Saving Certification
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
overseas standard packing, paper carton
Port
Shenzhen
Lead Time :
Shipped in 14 days after payment



Product Description

1. High Performance Index

  • 3/3 Phase double conversion online technology. Input 3 phase  load balanced design.
  • System adopts dual DSP controlled to enhance the overall reliability and keep low defective rate.
  • Modular structural design.Each module is 30KVA.System can add from 1 to 10 modulars.Maximum capacity 300KVA,user can be flexible to choose different capacity to match requirements.UPS modules can be hot-swappable to do online maintenance.
  • High density module design.Each module is 3U.1.4 meter height system cabinet can put maximum 5 modules with total 150VA.2 meter height system cabinet can put maximum 10 modules with total 300KVA.
  • N+X Parallel Redundancy design.With X≥2 modules with total 300KVA.
  • Control module parallel redundancy.MT-B Series each module is independently controlled by own controlling system.Any module failure will not be affecting the whole system.With hot-swappable technology,user can easily eliminate failed modules.
  • Individual bypass design.Each module has built-in bypass breaaker and bypass inductance to keep better system reliability.
  • Share Common Battery Bank in parallel system to reduce user initial battery investment.
  • Charging current can be selectable.User can set battery capacity on the LCD panel to auto select the best charging rate for the batteries.Also various charging methods can be chose via front panel.
  • Intelligent Charging Managements:Stage1 with constant high charging current to reach 90% capacity.Stage 2 with constant voltage-flexible current charging to reach 99% battery capacity.Stage3 will go to float charge. Charger will choose charging modes to activate battery lifetime and save battery investments.
  • Each module has additional LCD+LED display.User can simply check each module working status.
  • Intlligent management system.User can choose SNMP adapter to remotely monitor UPS status.
  • EPO equipped.



2. Safe and Reliable

  • Parallel Redundancy Module Tecnology to incerese system reliability.
  • Online Hot-Swap feature to reduce system maintenance costs and comprehensively protects the Loads operations.
  • MTBF is 1.5 times longer than traditional UPS system.
  • 90% of system components are from international famous brands, all devices has been aged and tested for 24 hours.



3. Compatible applications/load

MT-B Series is designed for small and medium important equiment system,such as SME data exchange centers,communication equiment industry, and precision instruments.



Product Pictures

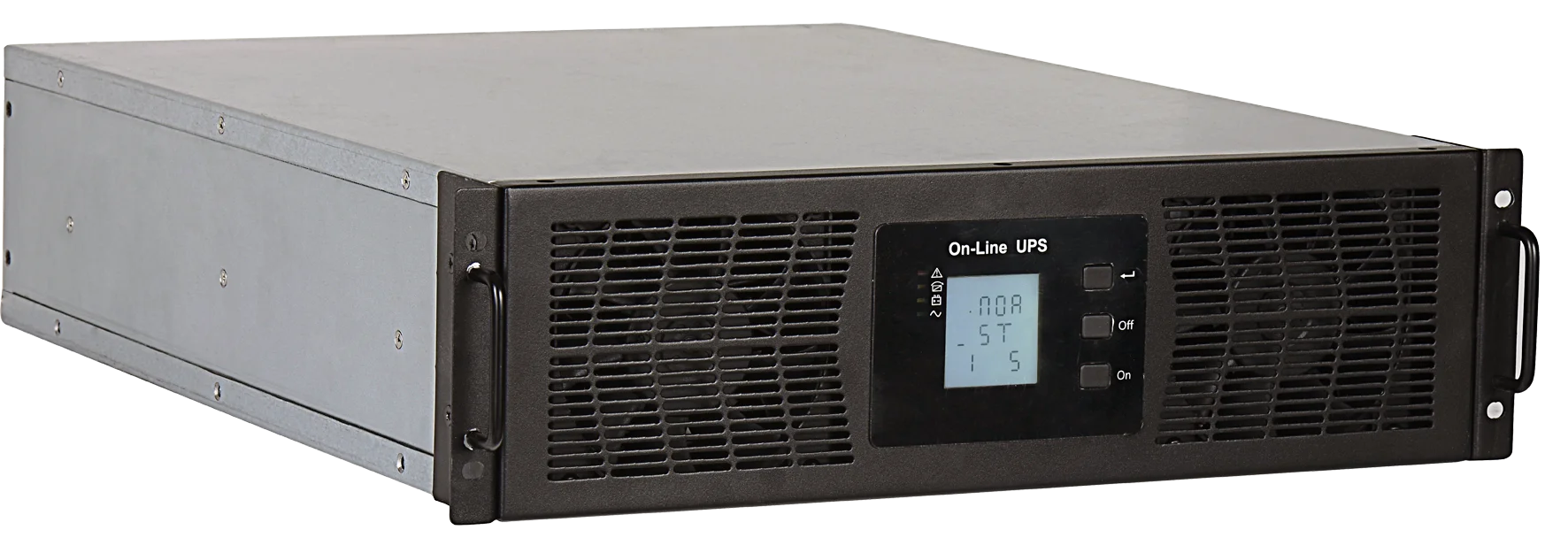

MT 30K 01.png
Overall View


Optional Selection
Specifications

Product Model

MT Modular

Capacity

30KVA

Host Machine Parameters

Parallel Redundancy

Modular Parallel upto 10 Units

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

Display

7 inch LCD Color Touch Screen(Multi-language with all kinds of message)+LED

Rectifier Parameters

Nominal Input Voltage

380Vac+N+W,3 phase

Input Voltage Range

204-478Vac

Input Frequency Range

40-70HZ

Inverter Parameters

Nominal Output Voltage

Line voltage:380*(1±1%)AC or Phase Voltage:220*(1±1%)AC

Output Power Factor

 0.9

Output Frequency

Synchronization with Input at online mode.When difference are greater than ±10%(Selectable±1%,±2%,±4%,±5%)Output freq. will be 50*(±0.2Hz  50±0.2%(BAT Mode)

Distortion

< 2%(100% Linear Load),< 5%(100% Non-Linear Load)

Output Wave Form

Pure Sine Wave

Overload

100% more than 10 Min;125% Load > 1 Min; > 150% Load >30s

Bypass Parameters

Static Bypass Transfer Time

0ms(Static Switch Phase Lock Technology)

Battery Parameters

Battery Voltage

±192Vdc/±204Vac/±216Vdc/±228Vac/±240Vdc(32,34,36,38,40Units Selectable)

BAT Low

Shutdown Protection

Communication Interface Parameters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Physical Parameters

Size mm(W×D×H)

Long-Run

443*580*131/3u

Net Weight Kg

33

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount



Company Information



l         Established in 1993, Jeidar has been specialized in the research, manufacture, sales and services of UPS productions for more than 20 years.

l         Jeidar has been honored as national and Shenzhen High-tech enterprise recognized by Chinese Government.

l         Customers from various industries including finance, tax, securities, insurance, postal services, telecommunications, transportation, public security, electricity, education, military and other large users with trust and praise.


l         Jeidar UPS believes in advanced technology, high reliability and high availability, quality, cost-effective and outstanding service.

l         Strong and Innovative R&D Department to handle different types of UPS Projects. We are not just selling UPS; We are power supply solution provider.

l         Fast response service team. We are always ready to serve you.

l         Experienced Overseas Sales Department. Our team members are coming from all around the world (United Kingdom, United States) with high educational background (Masters, Cornell University, University of Southern California, etc.)

Customer Service.jpg

"Your Satisfaction, Our Motivation" is Jeidar commitment to all our customers. Customers can follow our official website and other social media platforms for technical supports, power solutions, and other related consulting with our Jeidar Power Specialists:

l         Comprehensive Project requirements and specification consulting

l         Installation Instructions

l         Technical Supports

l         Roadmap for specific customizations

Certifications

ISO90012008 2013.1-2015.2.jpg



TUV Certification


National High-Tech Enterprise Certification

 RP DT380V 10-60KVA).jpg

TLC Certification

Packaging & Shipping

Packaging: Standard Safety Export Wooden Transportation Package.
Delivery Date: 3 Weeks After Payment (Deposit) has been received deposit. Delivery Date will be varied according to actual order quantity and customizations.






Package Top View

BH20.30S.L BH20.30L(110V).JPG

Exteranal Packaging View


Carrier Delivery View
