3 Phase IGBT Rectifier Online 30kva 3phase ups

FOB Reference Price:Get Latest Price
  • 1 - 4 Pieces
    US $2778.00
  • >=5 Pieces
    US $2632.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
JEIDAR or OEM
Model Number:
DT series 30KVA
Phase:
Three Phase
Protection:
Overvoltage
Weight:
106KG
Output Voltage:
L:380*(1±1%) / P:220*(1±1%)
Type:
On-line
Application:
Instrumentation
Series:
DT Series
Capacity:
30KVA
Wave Form:
Pure Sine Wave
UPS Structure:
Transformer
Standards:
CE
Certification:
CE, TLC, Energy Saving Certification
Supply Ability
Supply Ability:
30 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
overseas standard packing, paper carton
Port
Shenzhen
Lead Time :
Shipped in 14 days after payment



Product Description

1. High Performance Index

  • Advanced IGBT Rectifier and HF PFC Technology. Input Power Factor ≥0.99 to save more energy.
  • DT series adapts the 5th generation IGBT Inverter control technology to enchance the output voltage/current performance.Online 3 Phase Input and output double conversion struccture to adapt 380/400/415v,50/60Hz Mains Grid Supply Systems.
  • Output Power Factor 0.9 to carry 12.5% load capacities than traditional UPS.
  • Wide Input Voltage Range 380Vac(-45% to +25%) or 210-475 Vac with 50/60Hz Frequency Range.High adaptive capacity and Generator Capability with ratio of 1.2:1.
  • Overall efficiency upto 94%.Can reach to 98% on ECO Mode.
  • Powerful overload ability with output short circuit protection:110%-120% overloads for 10mins.125%-150% for 1 min.
  • Intelligent battery management to extend battery life.Dual DSP control to correct chargin parameters,which provides optimized charging solutions based on operational mode,such as float charge or equalized charge. Flexible Battery Configuration. It can be set on the front panel with 28/30/32 Units of Batteries.



2. Safe, Reliable and Easy Maintenance

  • DT series adapts dual DSP technology to control UPS all kinds of power function process(including Parallel function) in order to increase system reliablity.
  • Flexible Single or Dual Utility Power Input to comprehensively protect load devices.
  • Battery Misconnection protection. UPS will not be damaged by reverting the polarities connection.
  • Self-Evaluatino and Alarm of Phase Misconnection or Lost.
  • 100% 3 Phase Unbalanced Allowance Design.
  • Front Modular Maintenance Design.MTBF can be upto 300K Hours.
  • 90% of system components are from international famous brands. All devices has been aged and fully tested for at least 24 hours before leaving the factory.



3. Compatible applications/load

DT Series is designed for small and medium important equiment system,such as SME data exchange centers,communication equiment industry, and precision instruments.



Product Pictures

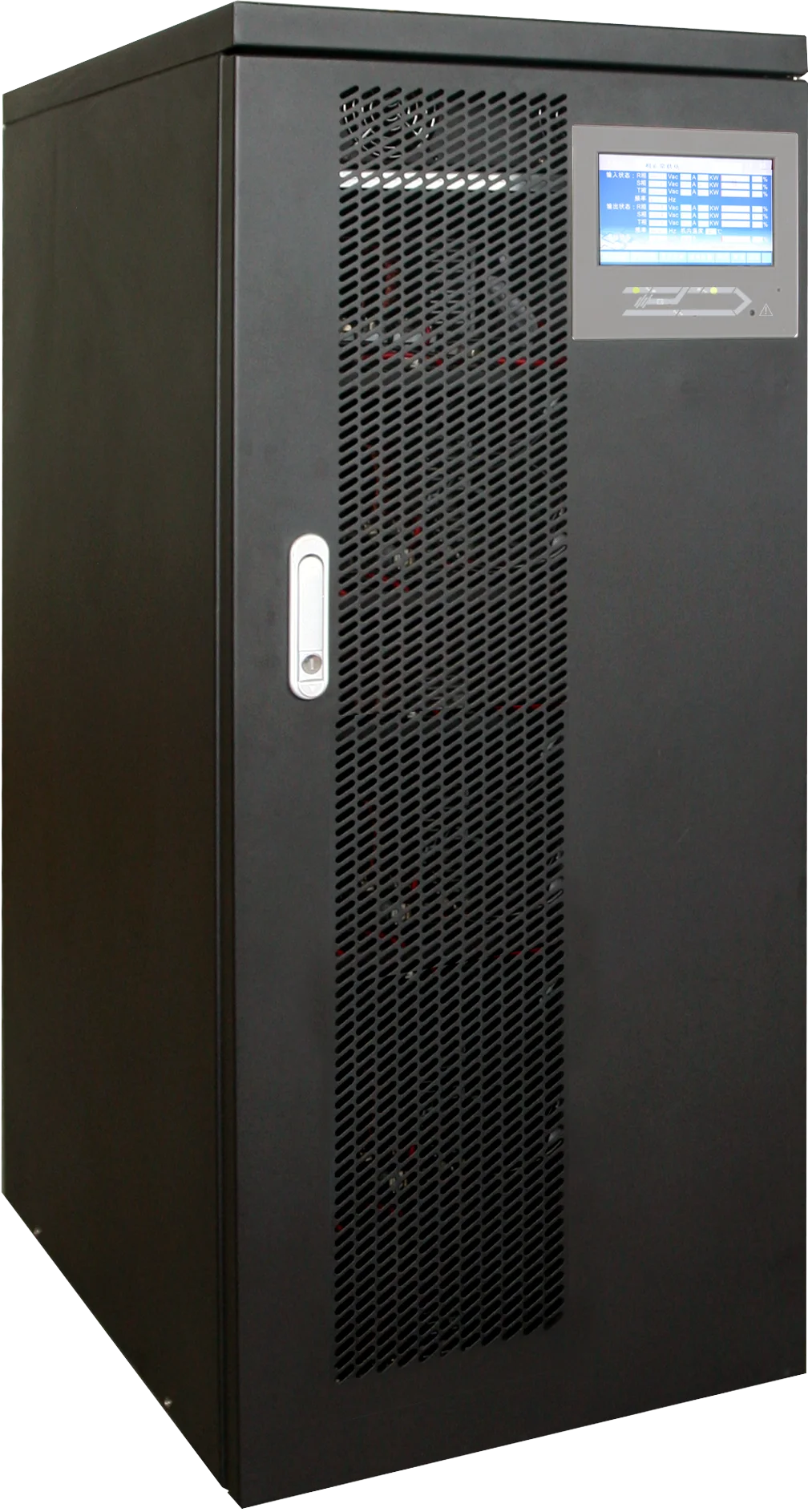

Overall View


Optional Selection
Specifications

Product Model

DT300L33

Capacity

30KVA

Host Machine Parameters

UPS structure

Online Double Conversion

Appearance

High Frequency Online Design

Overall Efficiency(AC-AC)

>93%

Working Temp.

-10-40℃

Storage Temp.

-25-60℃(Without Battery)

Noise(In 2 Meters)

<50-65dB

International Standard

EN50091-1/2,EN62040-1,EN62040-2

Protections

Overload, Short-Circuit, Over-Temp, Mains Input Abnormal, Battery Low,etc.

DC start

Available

Generator Compatibility

Available

Display

5 inch LCD Color Touch Screen(Multi-language with all kinds of message)+LED

Mute

Auto

Cabinet StandardIP20
Cooling SystemIntelligent Speed Control Cooling Fan
Elevation<1500M, without derated

Rectifier Parameters

Nominal Input Voltage

380Vac+N+W,3 phase

Input Voltage Range

380vac+25%-45%(When Input Voltage <75%, Output Power Derated)

Input Frequency Range

40-70HZ

Soft-Start

>20 Seconds

Input PF0.99
THDI<3.5%
Input Current57A/77A

Output Parameters

Nominal Output Voltage

Line voltage:380*(1±1%)AC or Phase Voltage:220*(1±1%)AC

Output Power Factor

 0.9

Output Voltage Regulation

380vac±1%(Static Load);380vac±2%(50-0% Sudden Change);380vac±3%(100-0% Sudden Change)

Output Frequency

±8% at 50Hz: Online Mode tracking input and bypass freq;±0.1%:when input or bypass frequency is more than ±8% or under BAT Mode<1%(Linear Full Load),<3%(Non-Linear Full Load)

Distortion

< 1%(100% Linear Load),< 3%(100% Non-Linear Full Load)

3 Phase Unbalanced

Allow 3 phase 100% Unbalanced

Output Volt Unbalanced Degree

≤1°(Balanced Load)

Input/Output Phase Swift≤1°(Balanced Load)
Frequency Tracking Range46-54Hz

Output Wave Form

Pure Sine Wave

Overload

<125%:More than 10mins    >125%:more than 1mins   >150%:More than 300ms transfer to bypass

Crest Ratio

3:1

Efficiency

>93%

Short-Circuit

Circuit Auto-Protection, Bypass Switch Tripping

Output Abnormal

INV.Output Auto-Locked Protection

Bypass Parameters

Static Bypass Transfer Time

0ms

Static Bypass Input Range

380Vac(-15-+15%)

Frequency Range

±1Hz,±2Hz,±3Hz Selectable

Bypass---INV Transfer Time

2ms

Frequency Tracking Speed

0.5-2hz/s

Manual Maintenance Bypass

Available

Battery Parameters

Type

Sealed Lead Acid Maintenance Free

Battery Voltage

±168Vdc(28units),±180Vdc(30units),±192Vdc(32units)

BAT Low

Shutdown Protection

Communication Interface Parameters

Communication Interface

RS232/SNMP/485/Dry Contact (Optional)

Remote Software

Multi-functional Monitoring System, Online and BAT Mode Status,BAT Fault, Remote Control

Physical Parameters

Size mm(W×D×H)



370*705*1030

Net Weight Kg

106

 Note:"S" stands for standard type (Battery Built-In), “L”stands for long run type, "RM" stands for Rack-Mount
