industrial 3 phase Online UPS

FOB Reference Price:Get Latest Price
  • 1 - 4 Pieces
    US $1850.00
  • >=5 Pieces
    US $1800.00
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
jeidar brand or OEM
Model Number:
FC
Phase:
Three Phase
Protection:
Unbalanced Loads
Weight:
230Kg
Output Voltage:
3x380Vac+N+W
Type:
On-line
Application:
Military
color:
black
Supply Ability
Supply Ability:
1000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
wooden packing
Port
shenzhen
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(day) 20 To be negotiated



Product Description

1. High Performance Index

  • Advanced SCR Rectifier Technology.With additional accessories, Input PF can be upto 0.99 and Input THDI <4.5%.
  • 5th generation IGBT technology to adapt 380/400/415V, 50/60Hz Mains Grid Supply Systems.
  • Output Power Factor 0.9 to carry 12.5% load capacities than traditional UPS.
  • Wide Input Voltage Range 380Vac (-45% to +25%) with 50/60Hz ±5% Frequency Range;High adaptive capacity and Generator Capability.
  • Overall Efficiency upto 90%. Can reach to 98% on ECO Mode.
  • Powerful overload ability with output short circuit protection technology: 110%-120% overloads for 10 minutes.125%-150% for 1 minute
  • Flexible Battery Configuration. It can be set on the front panel with 28-32 Units of Batteries. Common Battery Bank on Parallel mode.Battery Charging Compensation Feature
  • Intelligent Fault Diagnosis system with large storage memory of fault histories
  • Friendly and Intuitive User Interface. Large Color Touch LCD Screen with multi-functional buttons.

 2. Safe and Reliable

  • DSP technology to control UPS power function processes (including Parallel function) in order to increase system reliability.
  • Flexible Single or Dual Utility Power Input to comprehensively protect load devices.
  • Mis-Phase Connection Diagnosis, Evaluation and Alarm.
  • 100% 3 Phase Unbalanced Allowed
  • Front Maintenance Design. MTBF can be upto 300K Hours
  • 90% of system components are from international famous brands. All devices will be aged and tested for more than 24 hours





.jpg



Product Pictures
 RP100-400L33-F 03.png
Overall View
RP100-400L33-F 02.png

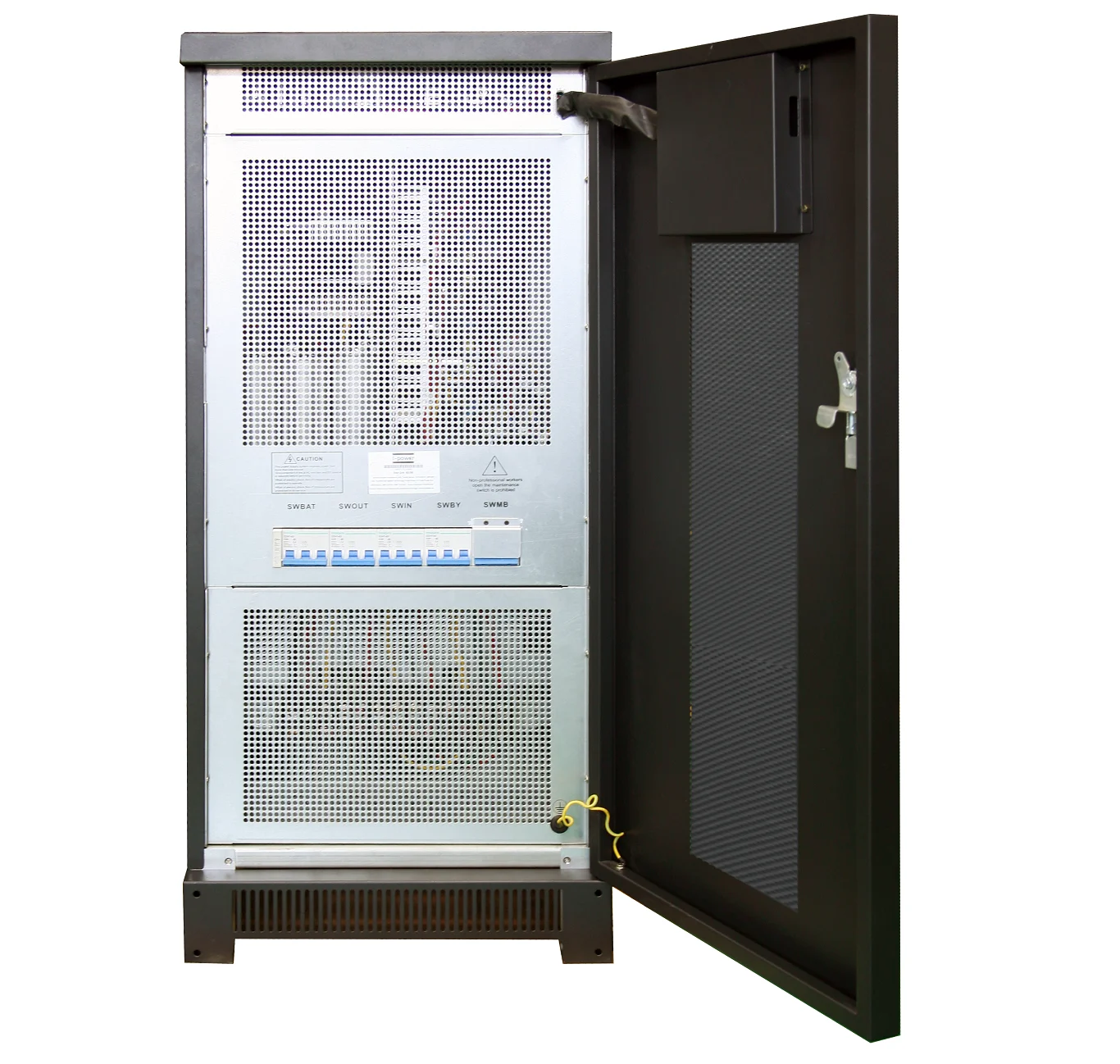

Front View

.png

Rear View



Specifications



Product Model

FC200L33

Capacity

20KVA

Host Machine Parameters

Overall efficiency(full load)

> 92%

Protections

Overload, short circuit, over temperature, mains over high/low, battery over high/low

Display

LCD(192×64 dot matrix display, over 200 faults information)+LED

Rectifier Parameters

Input Voltage

3×380Vac+N+W

Input voltage range

286-476Vac

Input frequency range

45-65Hz

Inverter Parameters

Output voltage

3×380Vac+N+W

Output Power factor

0.8

Output voltage stability

380±1% (static load), 380±3% (100-0% load change)

Output frequency

50Hz±0.1%

Distortion

< 1%(with full linear load),< 5%(100% non linear load)

Output waveform

Pure sine wave

Over load

>120% load for 10 minutes,  >150% load for 1minute turn to bypass and shutdown



Crest ratio

3:1

Bypass Parameters

Static bypass input voltage

380Vac±15%(±15%,±10% can be set up on the panel)

Static bypass transfer time

0ms(Static switch phase lock control technology)

Frequency range

±5%(±5%,±2% can be set up on the panel)

Manual bypass

Available

Battery Parameters

Battery voltage

12V/384Vdc, Std. for 32 Units,adjustable from 28-32 units

Communication Interface Parameters

Communication interface

RS232/SNMP/485/dry contact(Optional)

Physical Parameters

Dimension mm(W×H×D)

475×990×700

Weight Kg

230



Note:“L”stands for long run type , “33” stands for 3 phase in/ 3 phase out.
